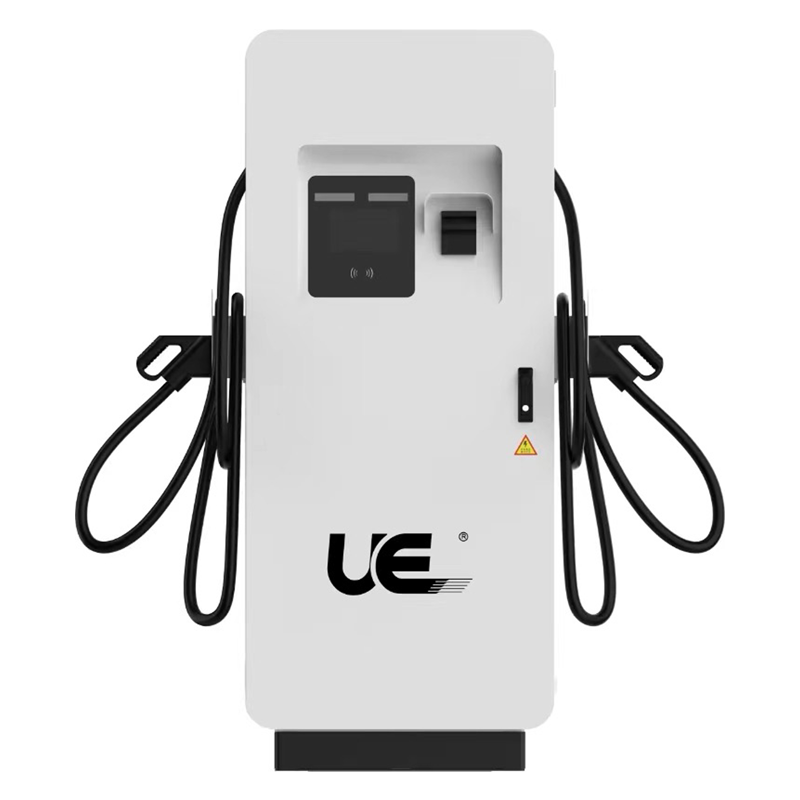

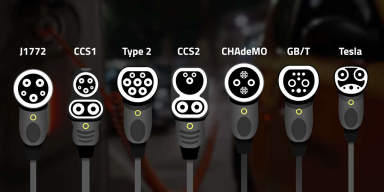

90kw DC fast EV charging pile CCS1/CCS2/GBT/CHAdeMO dual guns
Adopted nuclear safety grade high power power supply module platform, higher safety and reliability; Adoption of new high-efficiency three-phase PFC circuit topology, with power factor greater than 0.99. Harmonic variability is low ≤5; high execution efficiency.
Advanced digital equalisation technology, effectively improving the equalisation accuracy and anti-interference; the first module dormancy technology and rotation technology, to ensure that the system operates at high efficiency. Intelligent charging process control and perfect charging process monitoring and protection, easy to operate.
Timed charging, fixed amount charging, fixed amount charging and automatic full charging for choice.
Real-time display of charging amount, charging time, current electricity price, charging price and other information and operation status. Reserve RS-485 network communication interface, and provide optional GPRS network mode.
Hot-swappable module technology makes maintenance more convenient. Working environment temperature -20+50C.
Advanced digital equalisation technology, effectively improving the equalisation accuracy and anti-interference; the first module dormancy technology and rotation technology, to ensure that the system operates at high efficiency. Intelligent charging process control and perfect charging process monitoring and protection, easy to operate.
Timed charging, fixed amount charging, fixed amount charging and automatic full charging for choice.
Real-time display of charging amount, charging time, current electricity price, charging price and other information and operation status. Reserve RS-485 network communication interface, and provide optional GPRS network mode.
Hot-swappable module technology makes maintenance more convenient. Working environment temperature -20+50C.
Basic parameters
| Input | Power Supply | 3P+N+PE | 3P+N+PE |
| Voltage Range | 400VAC±20% | 400VAC±20% | |
| Frequency | 50/60Hz | 50/60Hz | |
| Output | Output Voltage | 200-1000V DC | 200-1000V DC |
| Maximum Current | 250A | 250A | |
| Rated Power | 90kW | 90kW | |
| User Interface | Charge Connector | Type 2 cable | |
| Cable Length | 5M | ||
| Enclosure | Galvanized steel | ||
| LED Indicator | Green/Yellow/Red | ||
| LCD Display | 7"color touch screen | ||
| RFID Reader | Mifare ISO/IEC 14443 A | ||
| Start Mode | Plug&Play/RFID card/App | ||
| Emergency Stop | Yes | ||
| Interface Language | English/Chinese | ||
| Auxiliary Power | 12Vdc | ||
| ommunication | WIF | Optional | |
| Ethernet | Yes | ||
| 3G/4G | Yes | ||
| OCPP | OCPP 1.6 Json (OCPP 2.0 optional） | ||
|
Electrical
Parameter
|
Ef ficiency | ≥95% | |
| Power Factor | ≥0.99 @50%～100%loading | ||
| THD | ≤5%@50%～100%loading | ||
| Ripple Factor | ≤±0.5% | ||
| RCD | Type A | ||
| Ingress Protection | IP54 | ||
Product Features
>Reliable quality→Using first-line brand components, honest materials, perfect product process and quality management system, a large number of stations for a long time.Operation inspection to ensure product quality.
>Safety protection → It has various protection functions such as leakage, lightning protection, short circuit, overvoltage and undervoltage, overcurrent, overtemperature, insulation monitoring, emergency stop, etc.Real-time monitoring of charging process.
> Easy maintenance → modular design, parallel modular layout, support module hot swap, flexible combination.
>Strong compatibility → wide voltage design, compatible with old and new national standards, real vehicle joint debugging test, applicable to various models.
