Basic parameters

>Working voltage:

Single-phase 220V

>Rated power:

>Frequency:

50hz

>IP Degree:

IP54

>Working temperature:

-20℃-+50℃

>Working humidity:

5%~95%HR

>The cooling way:

Natural air cooling

>Display parameters:

Charge voltage,charge current,charge quantity,SOC,fault code.

>Mean Time Between Failure (MTBF):

MTBF not less than 8760h

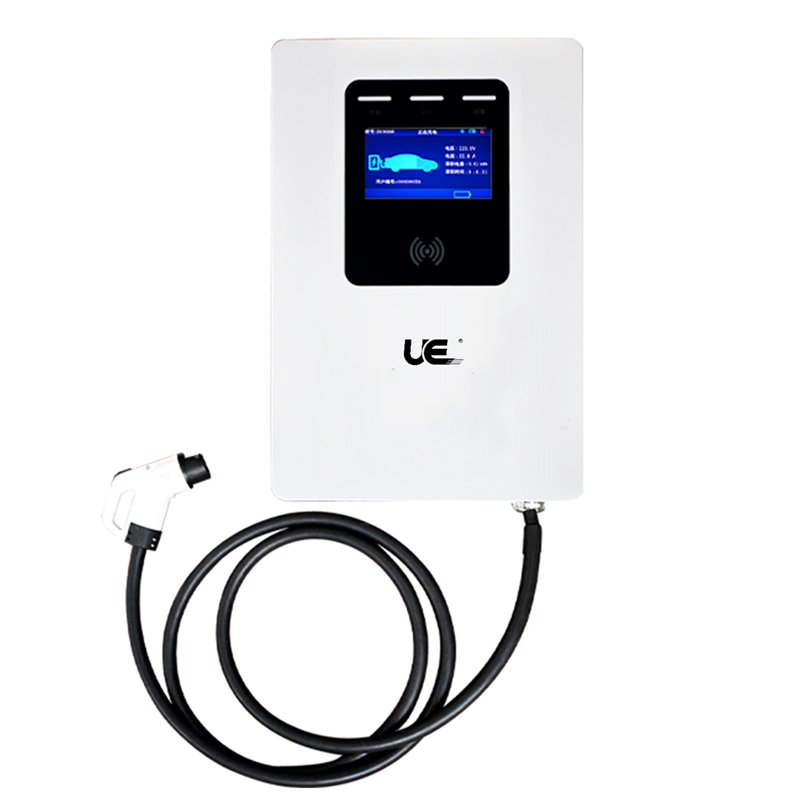

>Installation mode:

Column mounted (floor mounted)or wall mounted Install optional

Product Features

(1) Safe and stable: our AC charging pile provides reliable electrical safety protection function, which can be anti-theft, dustproof and waterproof, and the operation is stable, which can ensure long-term reliable operation. The protection level meets the outdoor IP54 level;

---

(2) System integration: the functions required for the whole charging pile, such as charging, man-machine operation, safety protection, metering and billing, are highly integrated, and the system is simple, easy to understand, stable and reliable operation.

---

(3) Simple and easy to use: the man-machine interface is friendly, simple and clear, and can be easily operated.

---

(4) Small footprint, easy to install: the plane area and space volume occupied by the whole charging pile are very reasonable, improving the space utilisation rate and facilitating the installation and application in the lot with tight land use.

---

(5) Communication interface: Provide multiple communication interfaces, such as CAN network, Ethernet interface, etc., which can be used to communicate reliably with charging pile data concentrator, monitoring background and other communication terminals.

---

(6) Metering and billing: embedded with electricity meter and billing system, providing accurate metering and billing functions.

---

(7) With perfect three-proof (anti-moisture, anti-mould, anti-salt spray) protection and anti-rust protection printed circuit boards, connectors and other circuits in the pile are treated with anti-moisture, anti-mould and anti-salt spray to ensure that the charging pile can operate normally in the humid, salt spray-containing environment outdoors. Charging pile shell and exposed iron bracket, parts to take double-layer anti-rust measures, non-ferrous metal shell also has anti-oxidation protective film or anti-oxidation treatment.

---

(8) Beautiful appearance: the overall appearance design is simple and generous.
